How do I choose a vacuum furnace hot-zone material?
The hot zone is usually selected from process temperature, atmosphere, contamination limits, workpiece chemistry, and expected maintenance requirements.
Vacuum furnace
V Series vacuum furnaces for clean high-temperature heat treatment.
Use the V Series for sintering, annealing, degassing, brazing, and controlled high-temperature treatment under vacuum or protective gas.
Clean vacuum processing
Multiple hot-zone materials
Controlled atmosphere
Batch and continuous options
Materials And Applications
Typical materials
ceramicsmetalsgraphitemolybdenumtungstenelectronic materials
Application fields
Vacuum sinteringHeat treatmentBrazingElectronic materials
| Model | Temperature | Pressure / Load | Atmosphere | Work zone / sample | Scale | Best For |
|---|---|---|---|---|---|---|
| V2 | Project matched | No mechanical load | Vacuum / inert gas | Project matched | Lab / pilot | General vacuum heat treatment |

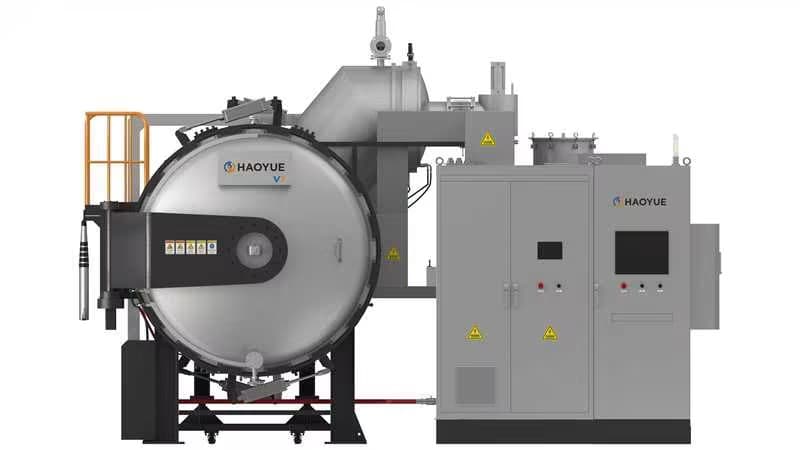

| V4 | High temperature | No mechanical load | Vacuum / inert gas | Project matched | Pilot / production | Graphite hot-zone furnace needs |
| V5 | High temperature | No mechanical load | Vacuum / inert gas | Project matched | Pilot / production | Molybdenum hot-zone processes |
| V7 | Ultra-high temperature | No mechanical load | Vacuum / inert gas | Project matched | Special process | Tungsten hot-zone requirements |

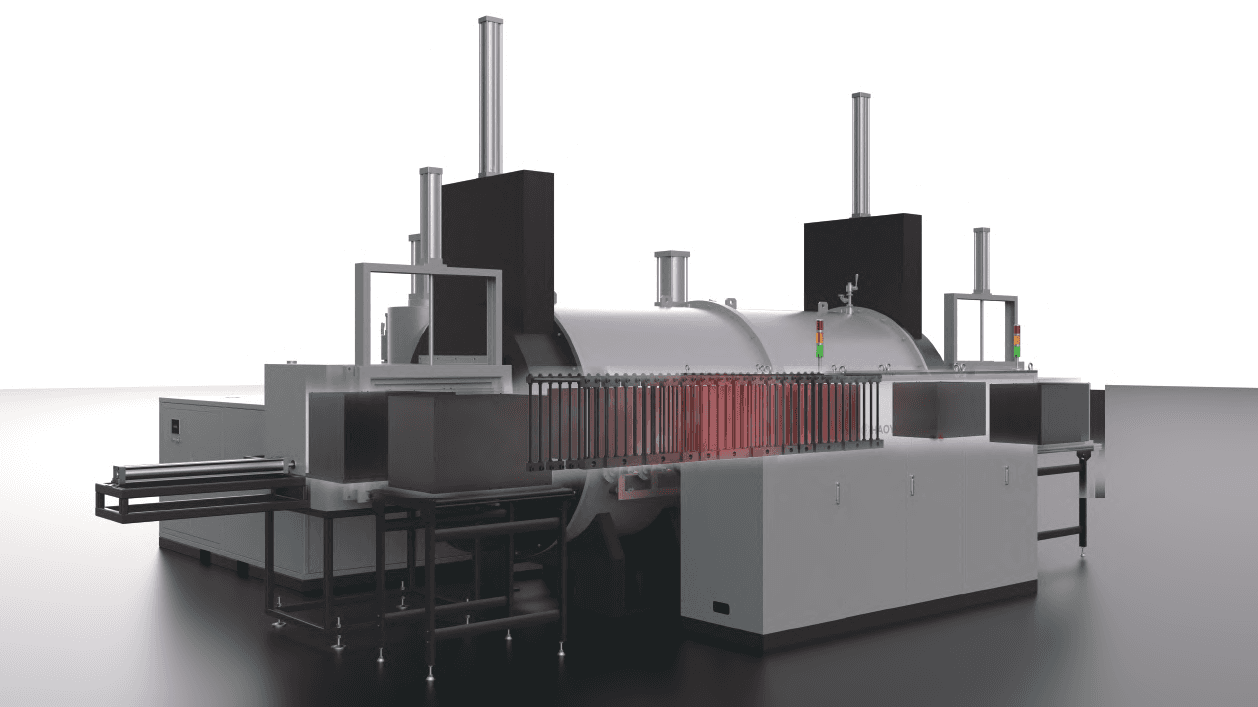

| V10 | Project matched | No mechanical load | Vacuum / protective gas | Project matched | Production | Continuous processing |
Selection guide
Vacuum furnace selection guide
Start by defining the material, target heat treatment or sintering result, hot-zone material, vacuum level, process gas, cooling method, usable work zone, and batch mass. Graphite, molybdenum, tungsten, induction, and continuous layouts serve different temperature, contamination, and production requirements.
Vacuum sintering vs hot pressing
Vacuum sintering is selected when parts do not need mechanical pressure during heating. Hot pressing is selected when applied load is part of the densification route and tooling contact is acceptable.
Proposal checklist
Material and contamination limits
Target temperature
Vacuum level
Process gas
Work zone size
Cooling and batch capacity
Buyer FAQ
When is a vacuum furnace better than a hot pressing furnace?
A vacuum furnace is better when the process needs clean heat treatment, sintering, brazing, annealing, or degassing without applying mechanical load.
What should be included in a vacuum furnace inquiry?
Provide material, target temperature, vacuum level, atmosphere, work zone size, batch capacity, heating/cooling cycle, and production schedule.
Delivery and installation
Keep the equipment scope connected to site readiness.
The proposal can cover factory testing, utility interfaces, delivery documents, installation, commissioning, operator training, and spare parts. Confirm the scope with the destination and timeline.
Factory test and inspection records
Electrical, cooling, gas, exhaust, and access interfaces
Installation, commissioning, and operator training
Spare parts, manuals, and service contact after handover

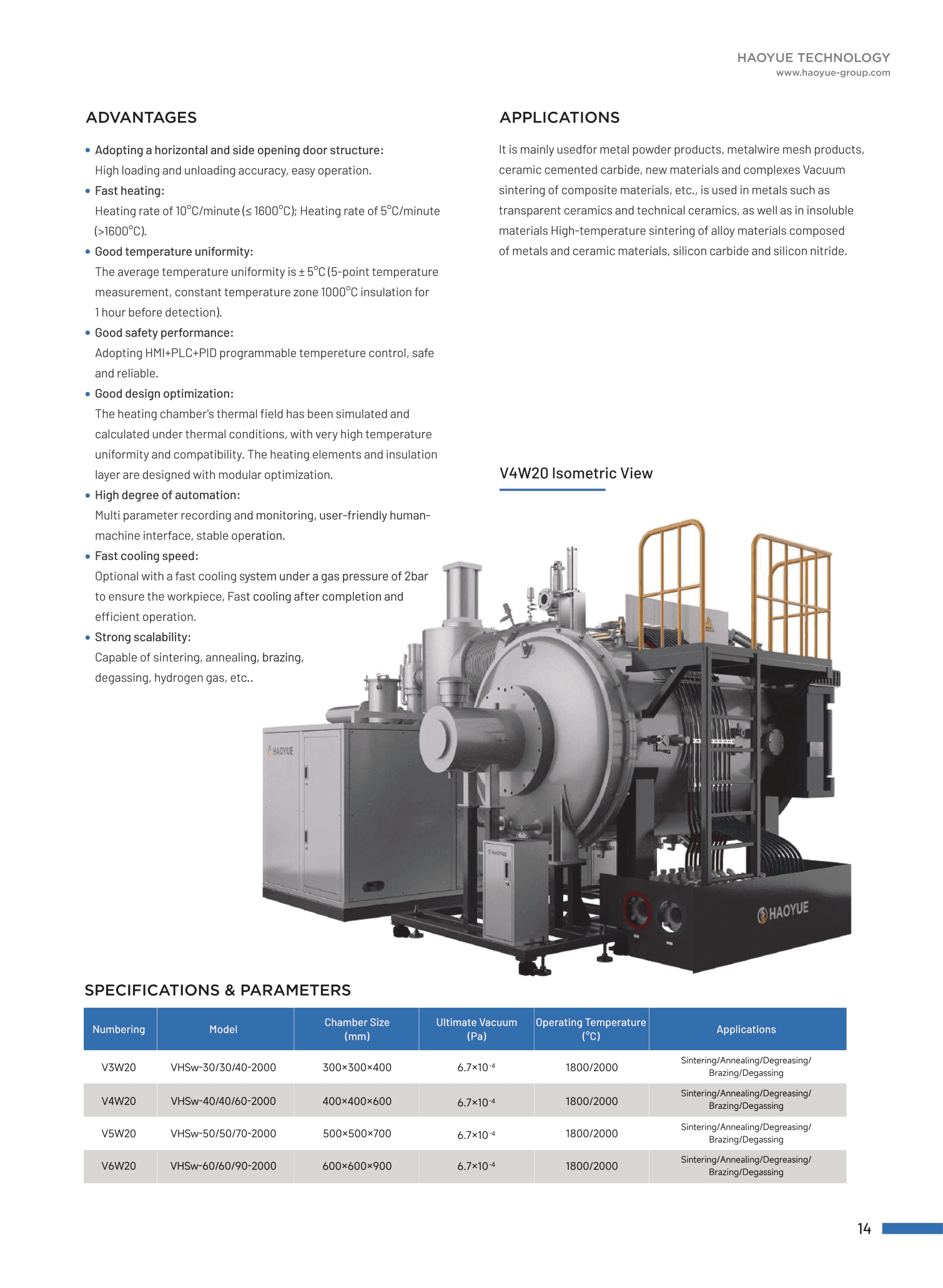

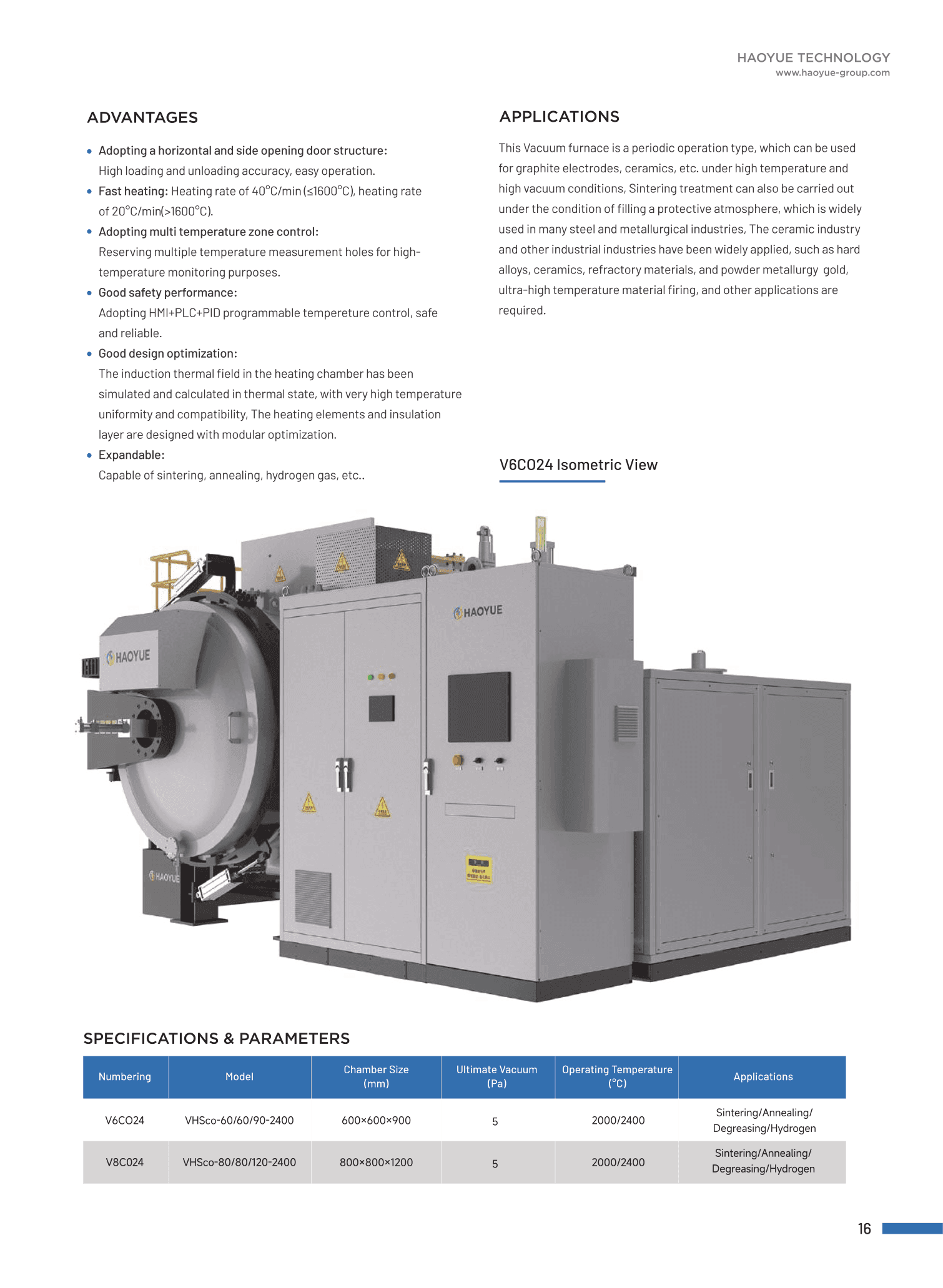

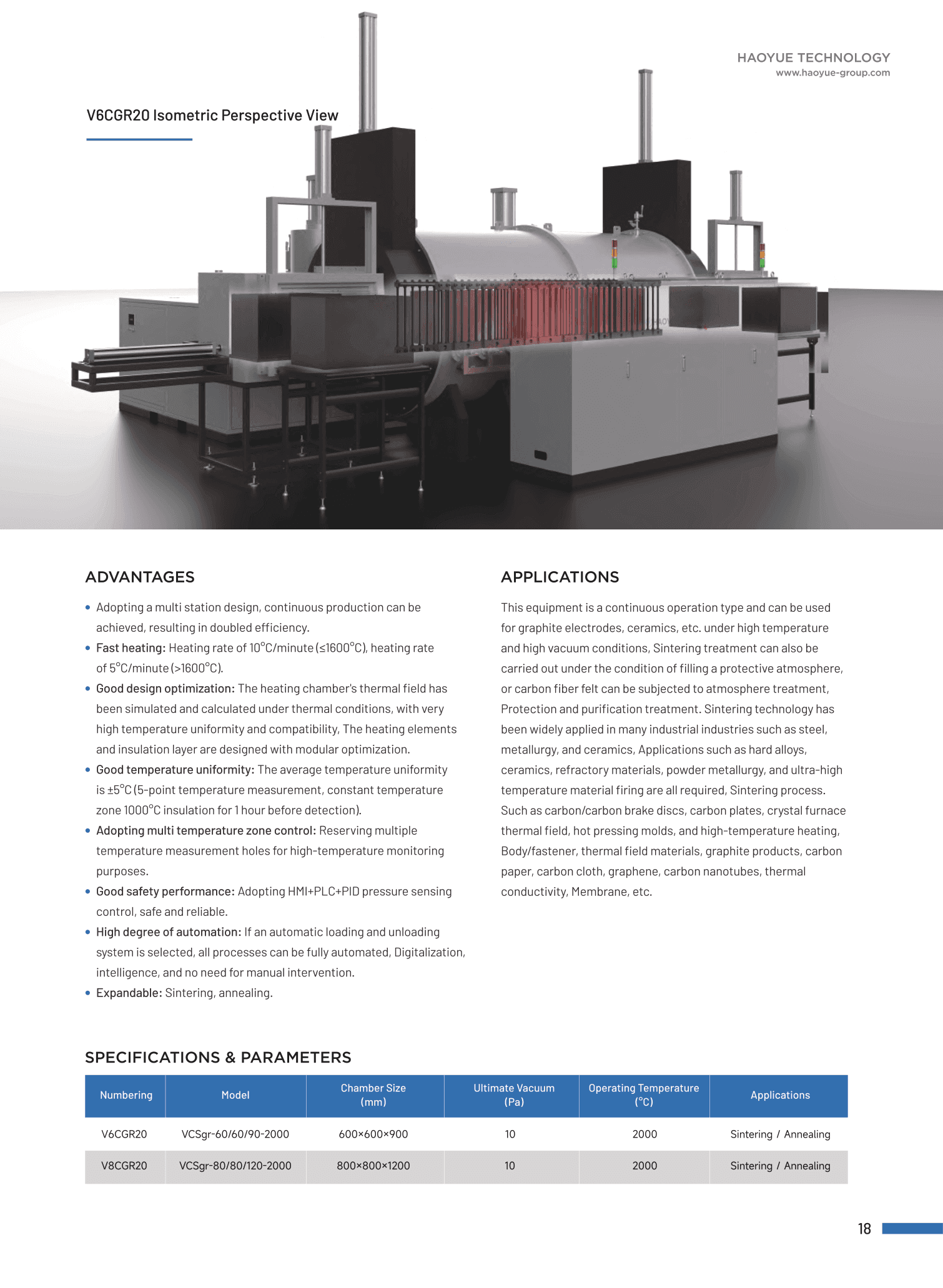

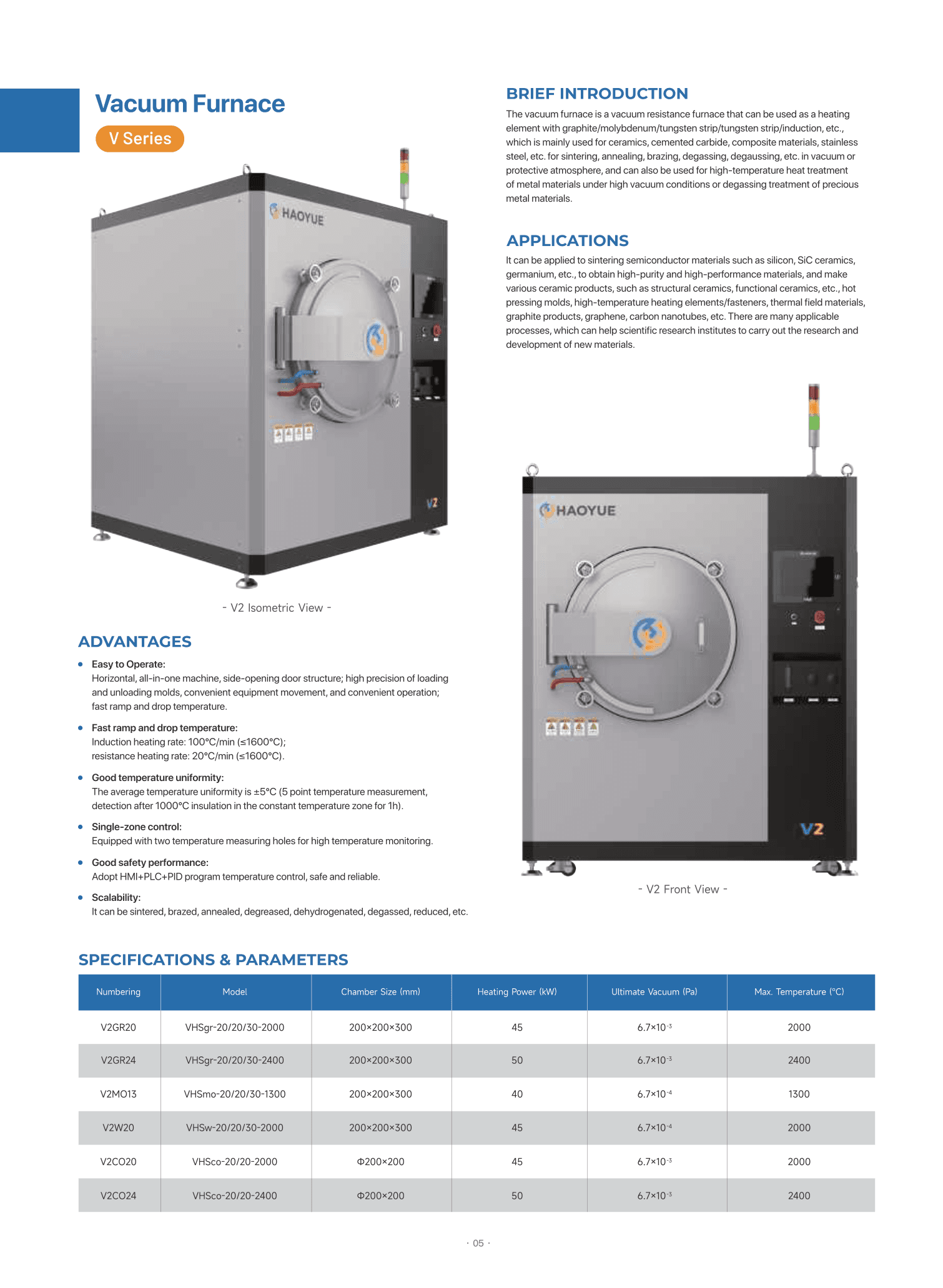

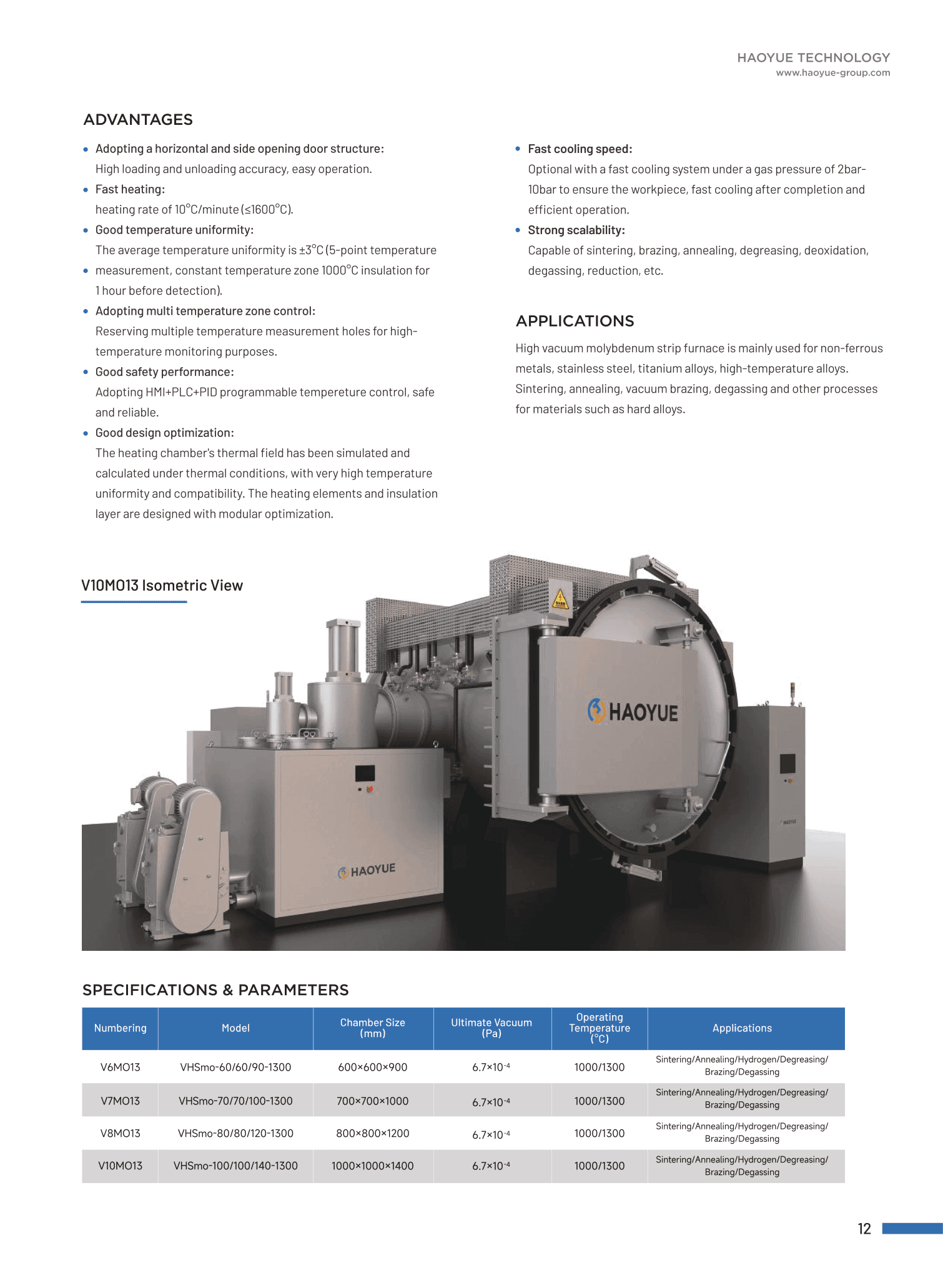

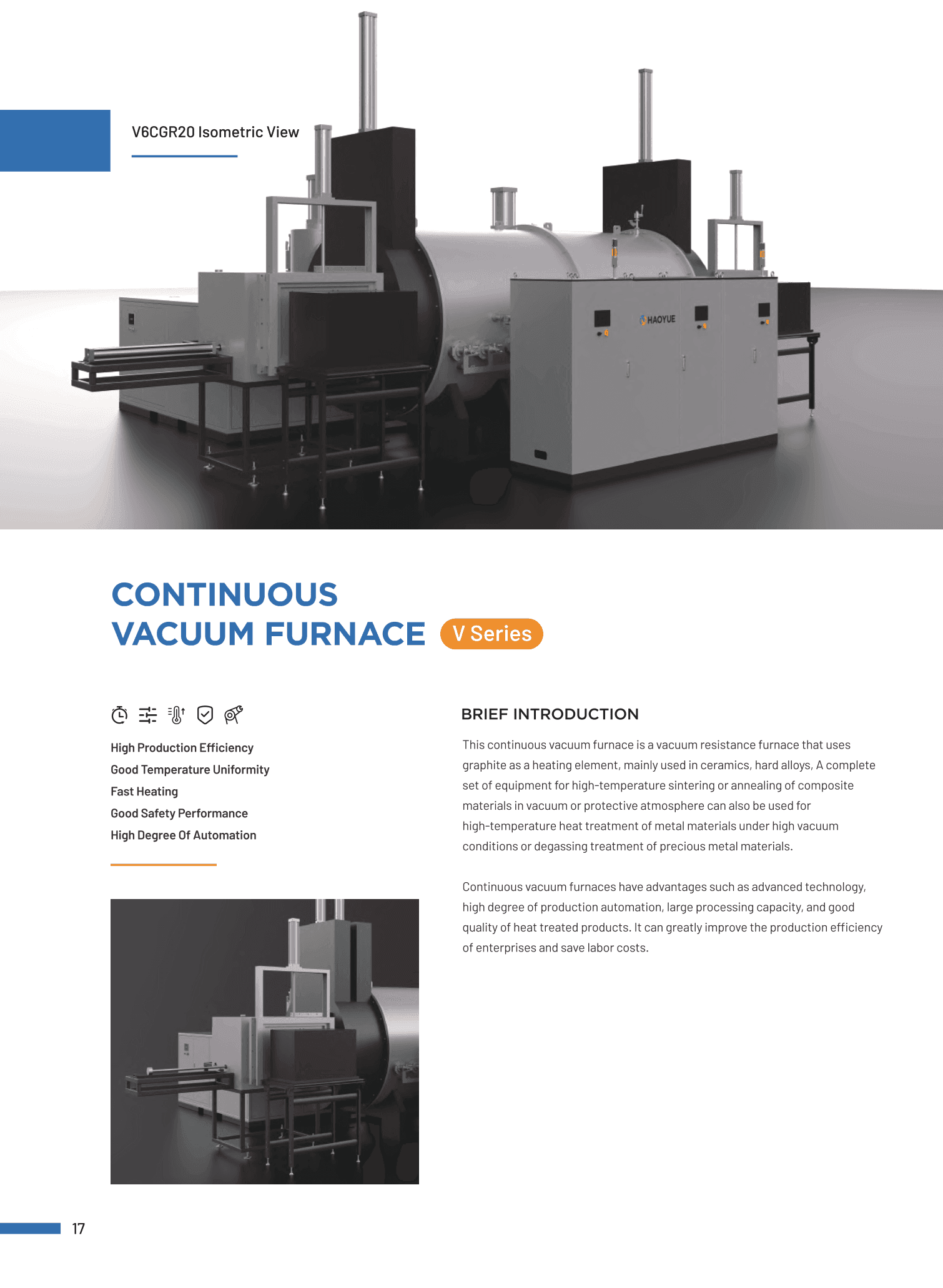

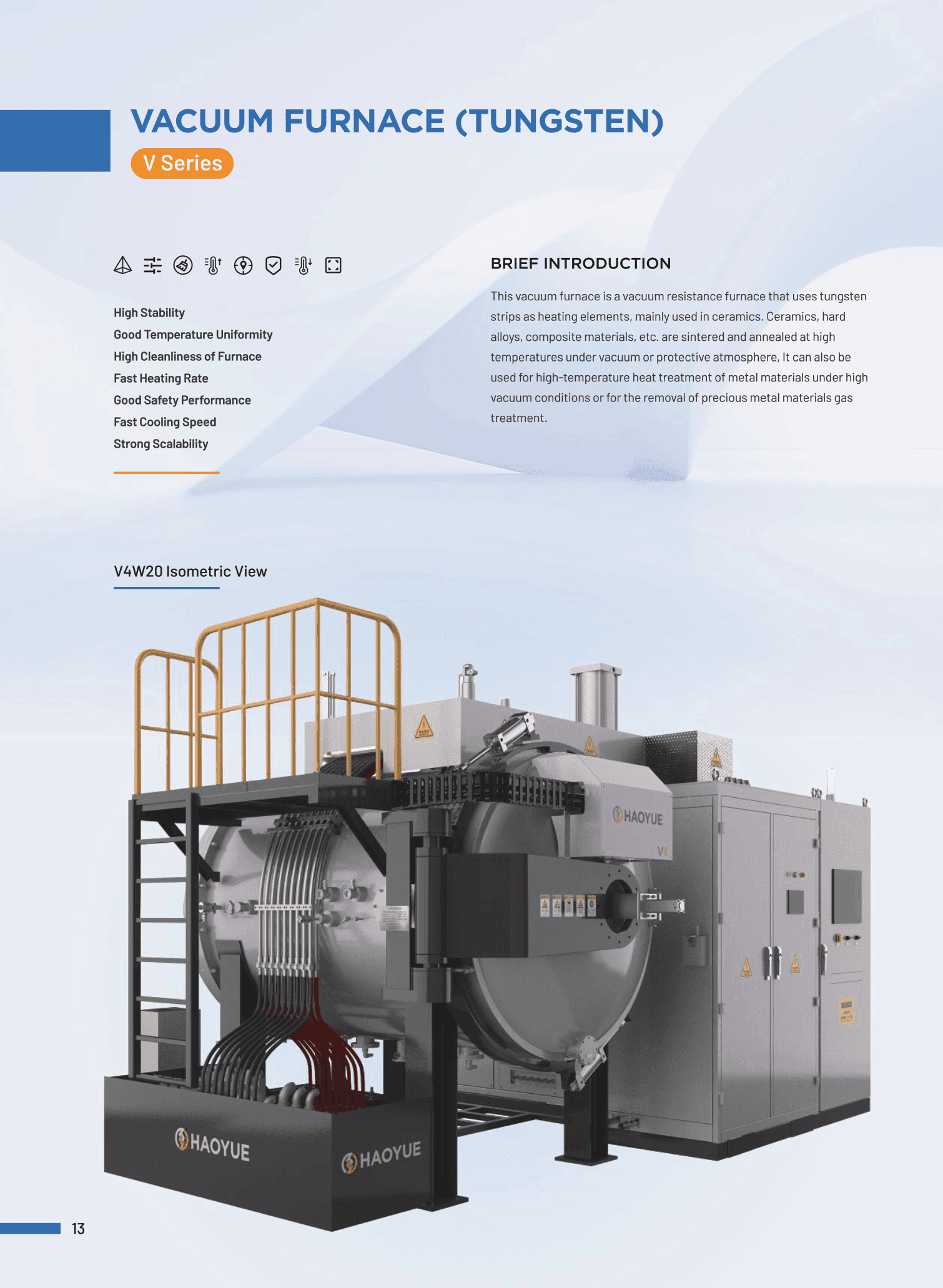

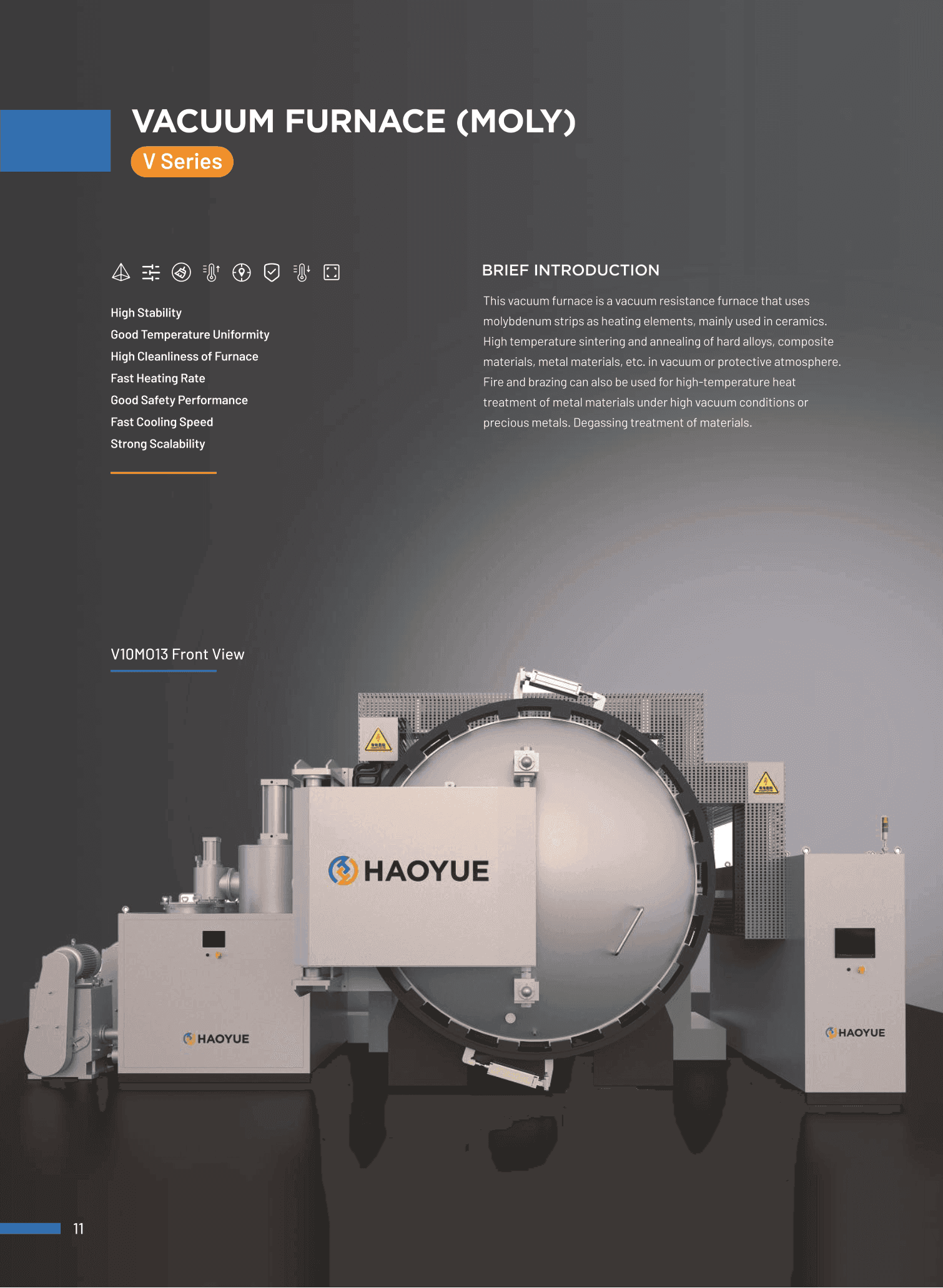

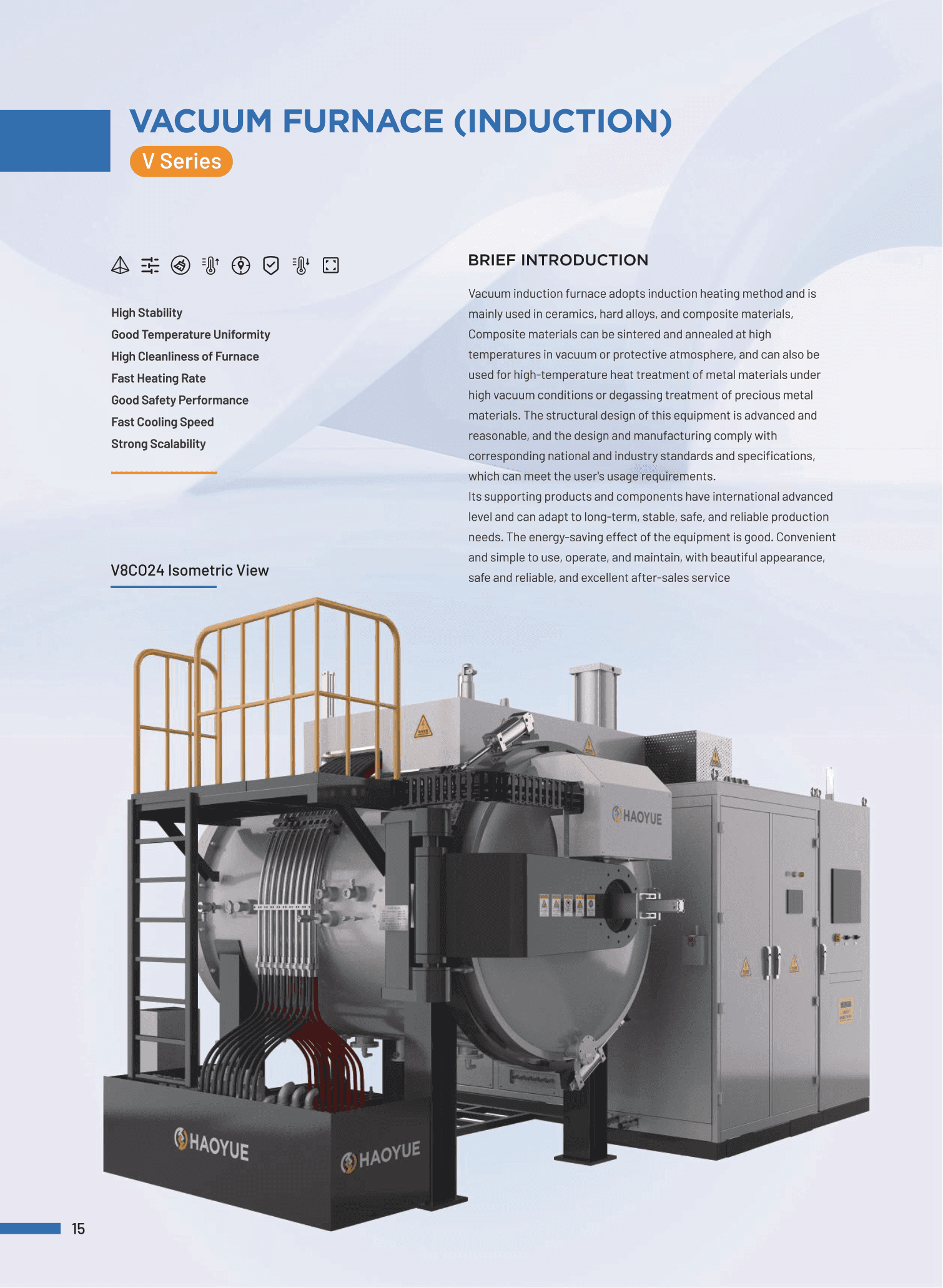

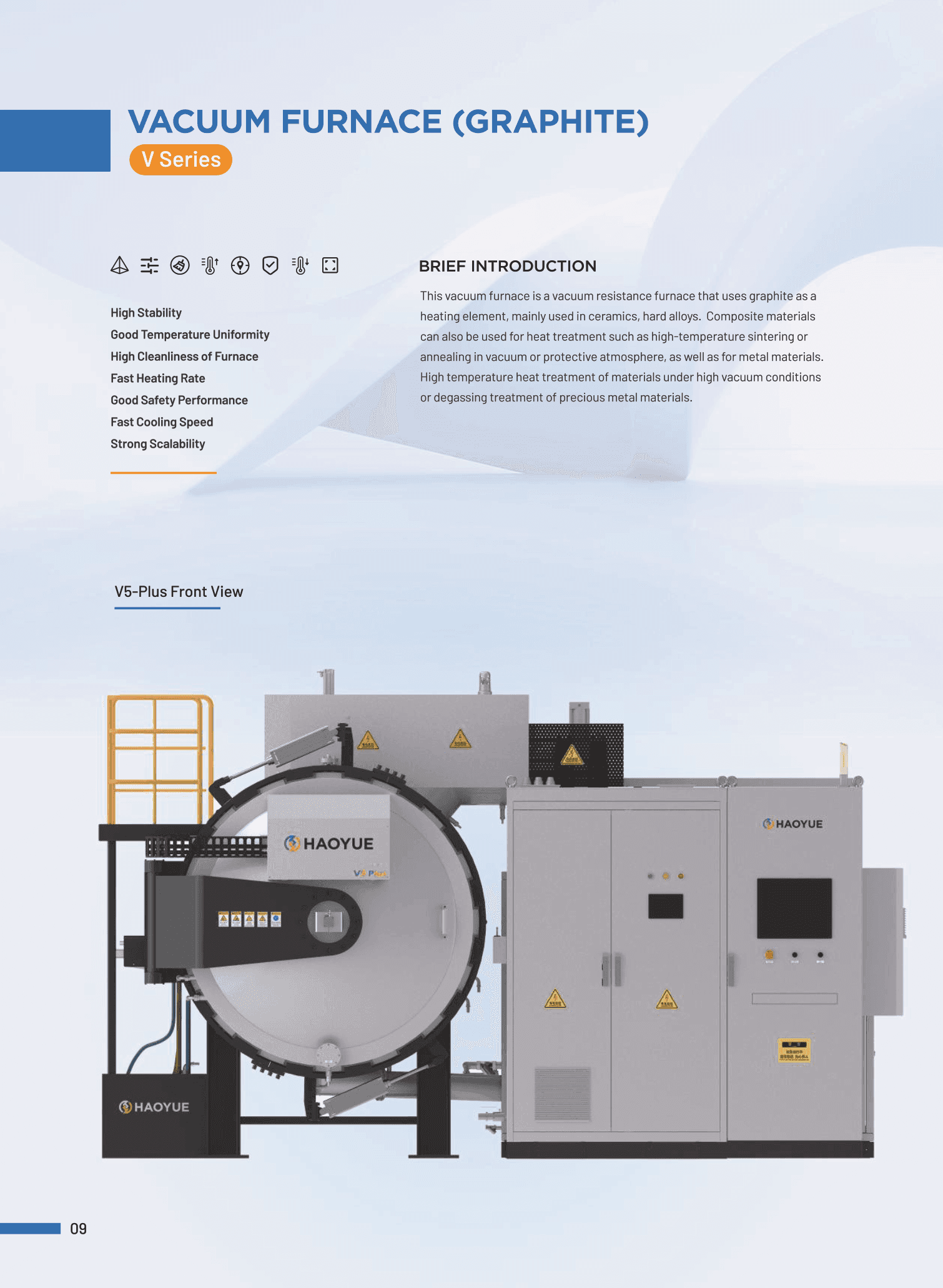

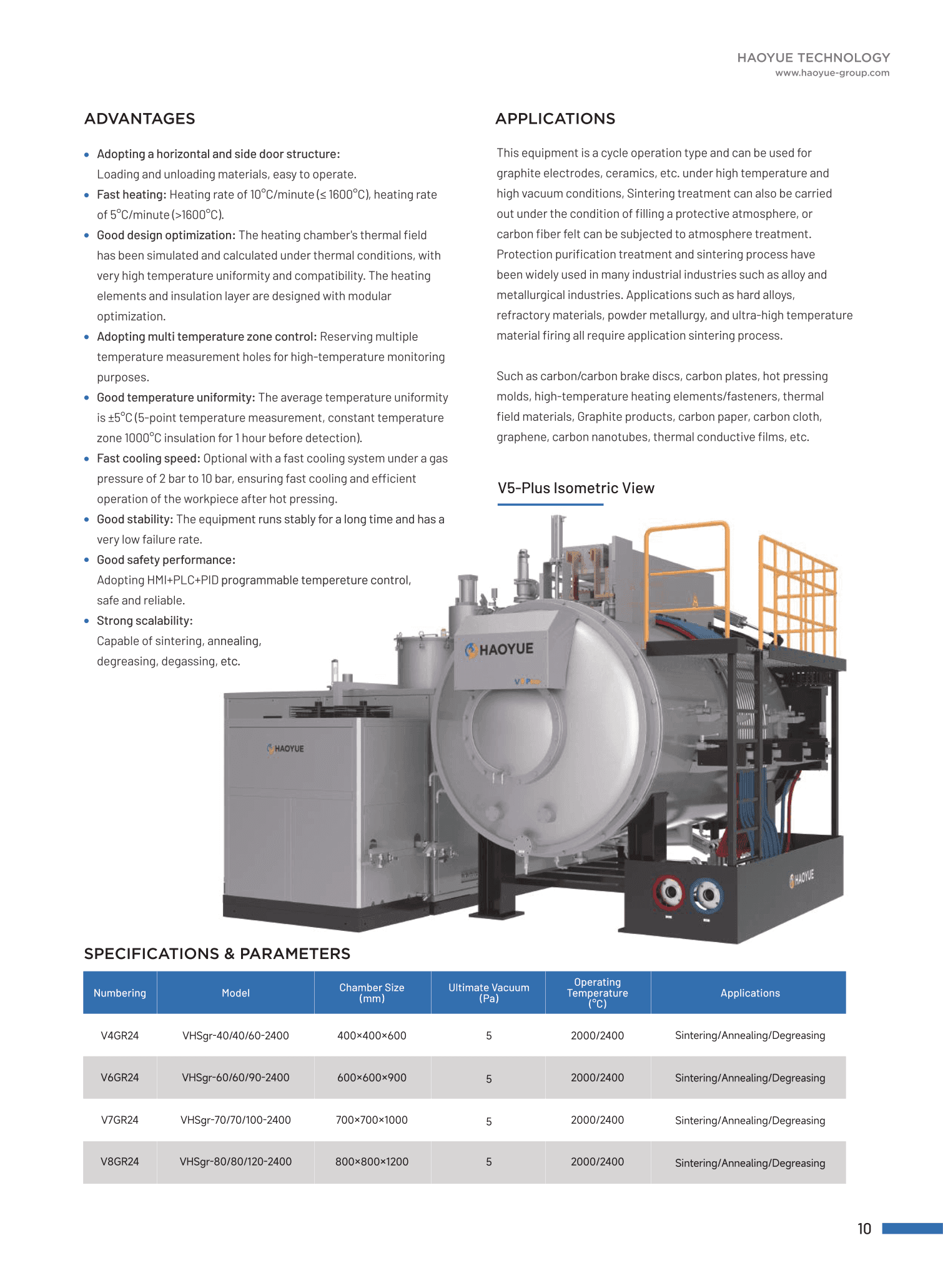

Brochure pages
V Series Vacuum Furnace Reference
