What materials fit a gas pressure sintering furnace?
Gas pressure sintering is commonly reviewed for silicon nitride, silicon carbide, ceramic tools, ceramic balls, and structural ceramics.
Gas pressure sintering
G Series gas pressure furnaces for advanced ceramic sintering.
Use the G Series when silicon nitride, carbide, or structural ceramic parts need controlled high-temperature gas pressure sintering.
Gas pressure control
Advanced ceramic sintering
Safety interlocks
Vertical and horizontal layouts
Materials And Applications
Typical materials
silicon nitridesilicon carbideceramic toolsstructural ceramics
Application fields
Gas pressure sinteringCeramic ballsCutting toolsStructural ceramics
| Model | Temperature | Pressure / Load | Atmosphere | Scale | Best For |
|---|---|---|---|---|---|
| G2 | Up to 2000 C | 0-9.8 MPa | Ar / N2 | Lab / pilot | Silicon nitride and ceramic trials |
| G4 | High temperature | Project pressure range | Ar / N2 | Pilot / production | Vertical gas pressure sintering |
| G5 | High temperature | Project pressure range | Ar / N2 | Production | Horizontal industrial batches |
Selection guide
Gas pressure sintering furnace selection guide
Gas pressure sintering projects should begin with the ceramic material, target density, pressure range, nitrogen or argon process, maximum temperature, part geometry, loading method, and safety requirements. Silicon nitride projects often require a clear pressure-temperature-atmosphere window before model selection.
HIP vs gas pressure sintering
Gas pressure sintering is usually selected during the high-temperature sintering process for ceramics such as silicon nitride. HIP is usually selected as a high-pressure post-treatment or densification process where isostatic pressure is required.
Proposal checklist
Ceramic material
Target pressure
Gas type
Temperature profile
Loading size
Safety and production requirements
Buyer FAQ
What gas information is needed for quotation?
Confirm whether the process uses nitrogen, argon, or another gas, plus target pressure, temperature, hold time, part loading, and safety expectations.
Is gas pressure sintering the same as HIP?
No. Gas pressure sintering supports ceramic sintering under gas pressure, while HIP applies isostatic pressure and is often used for densification or defect reduction.

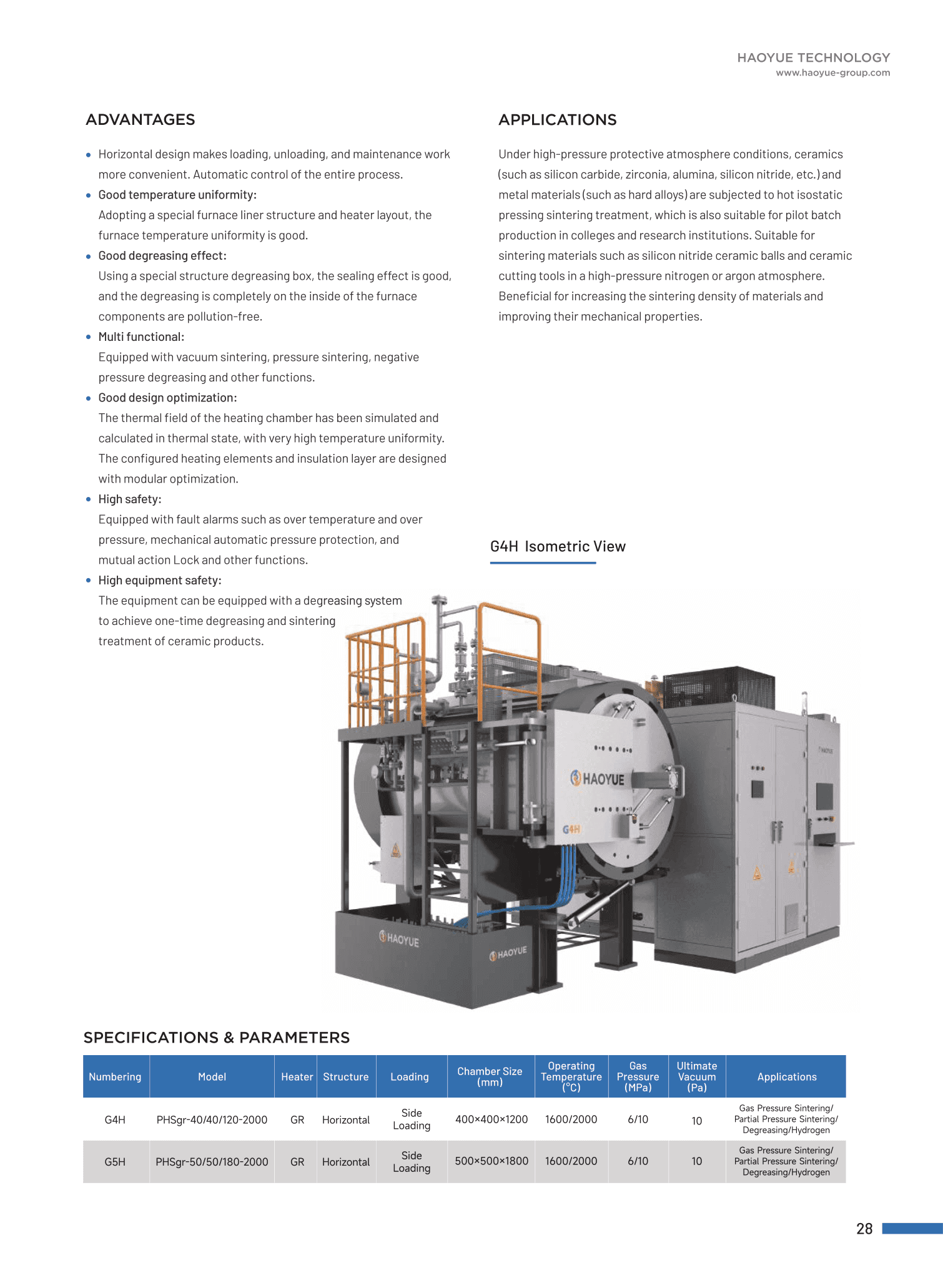

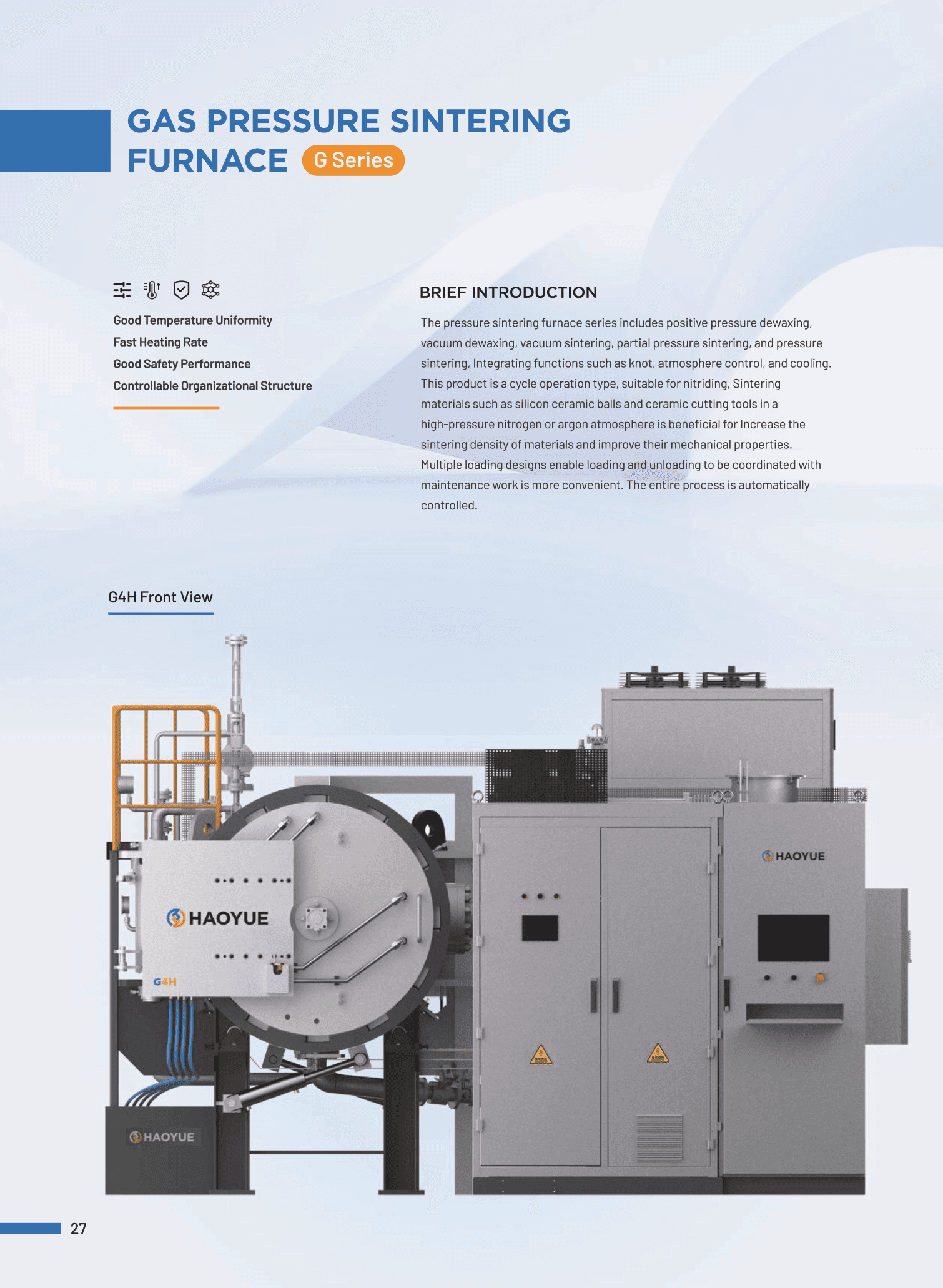

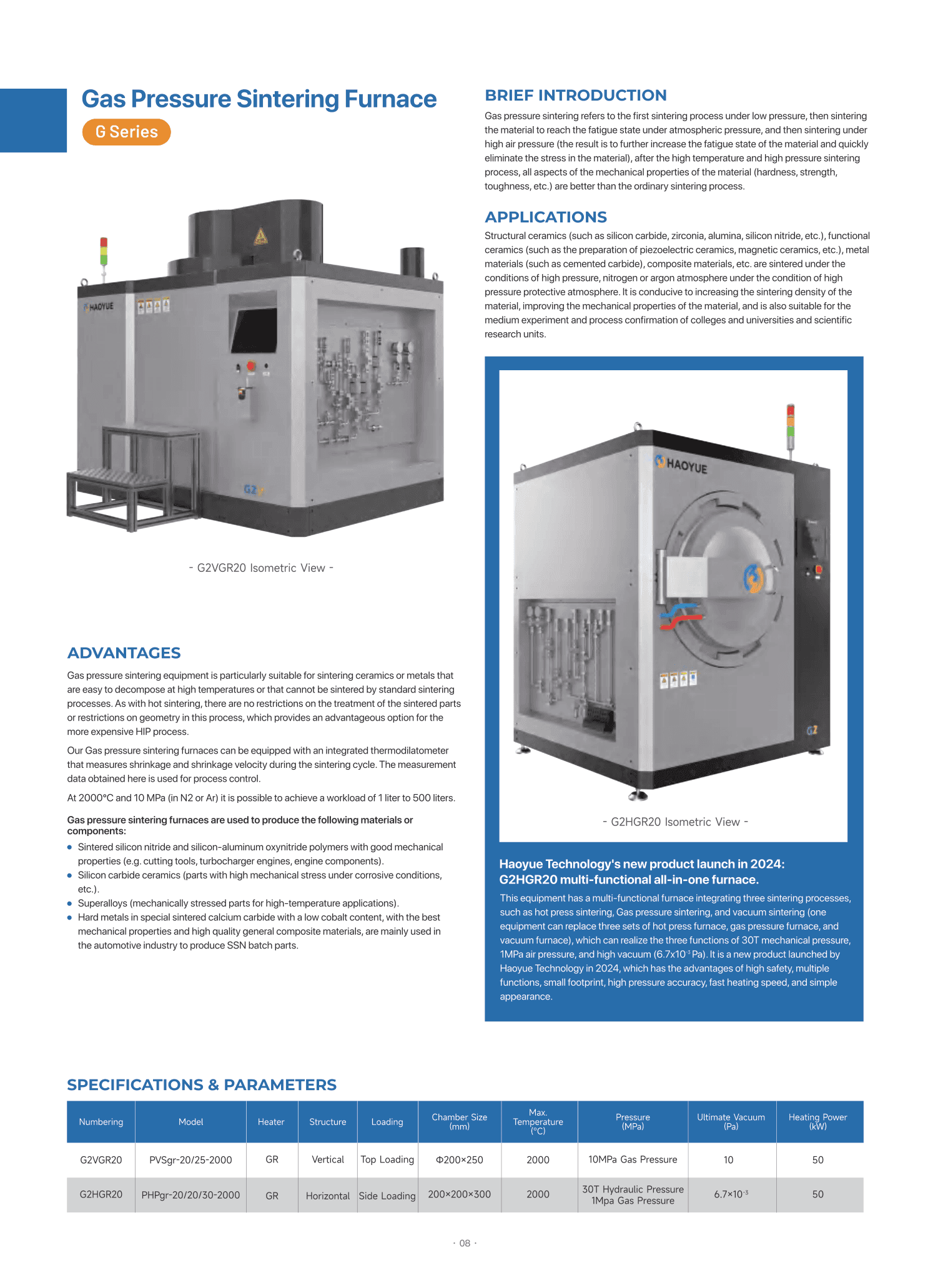

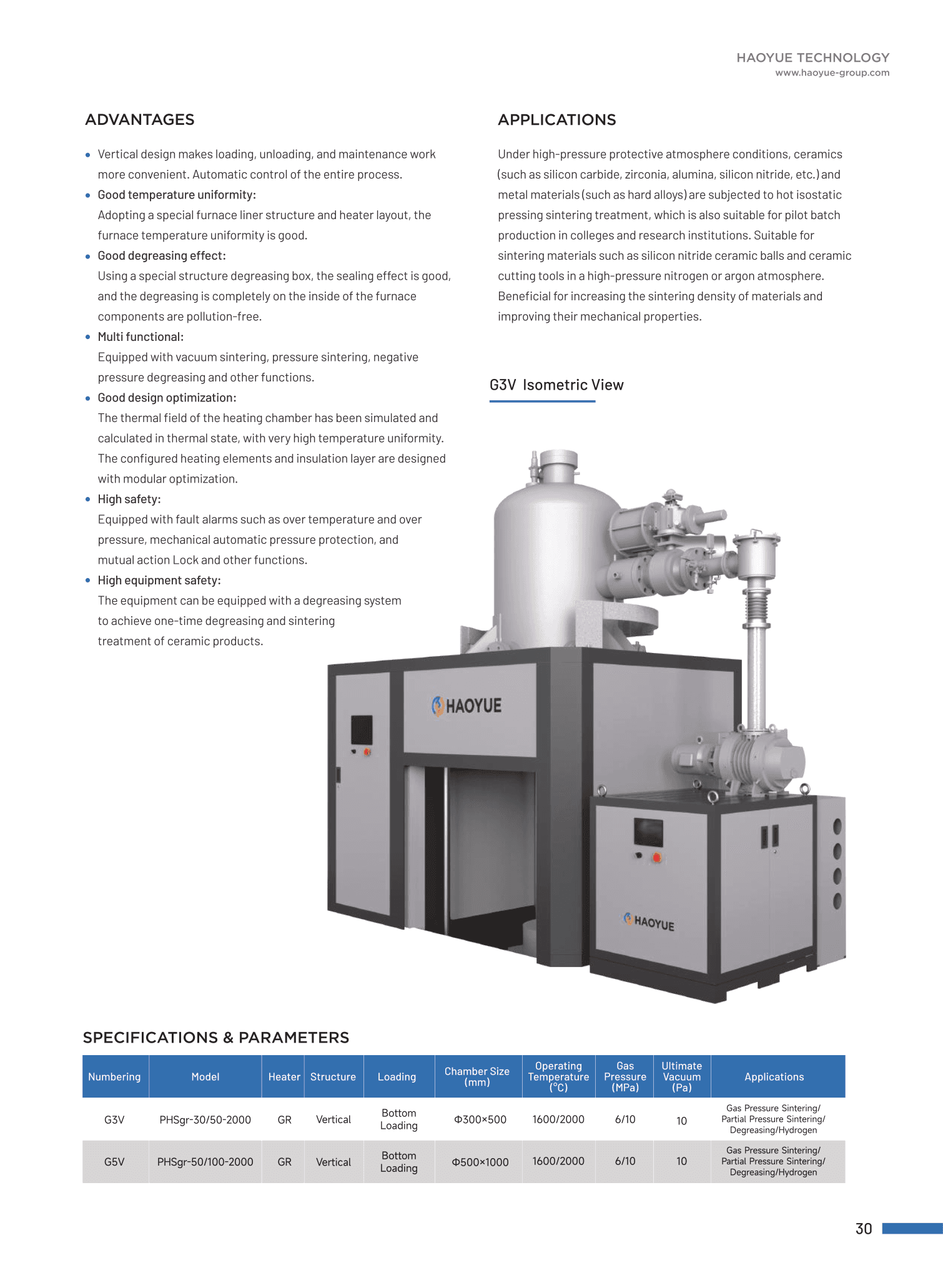

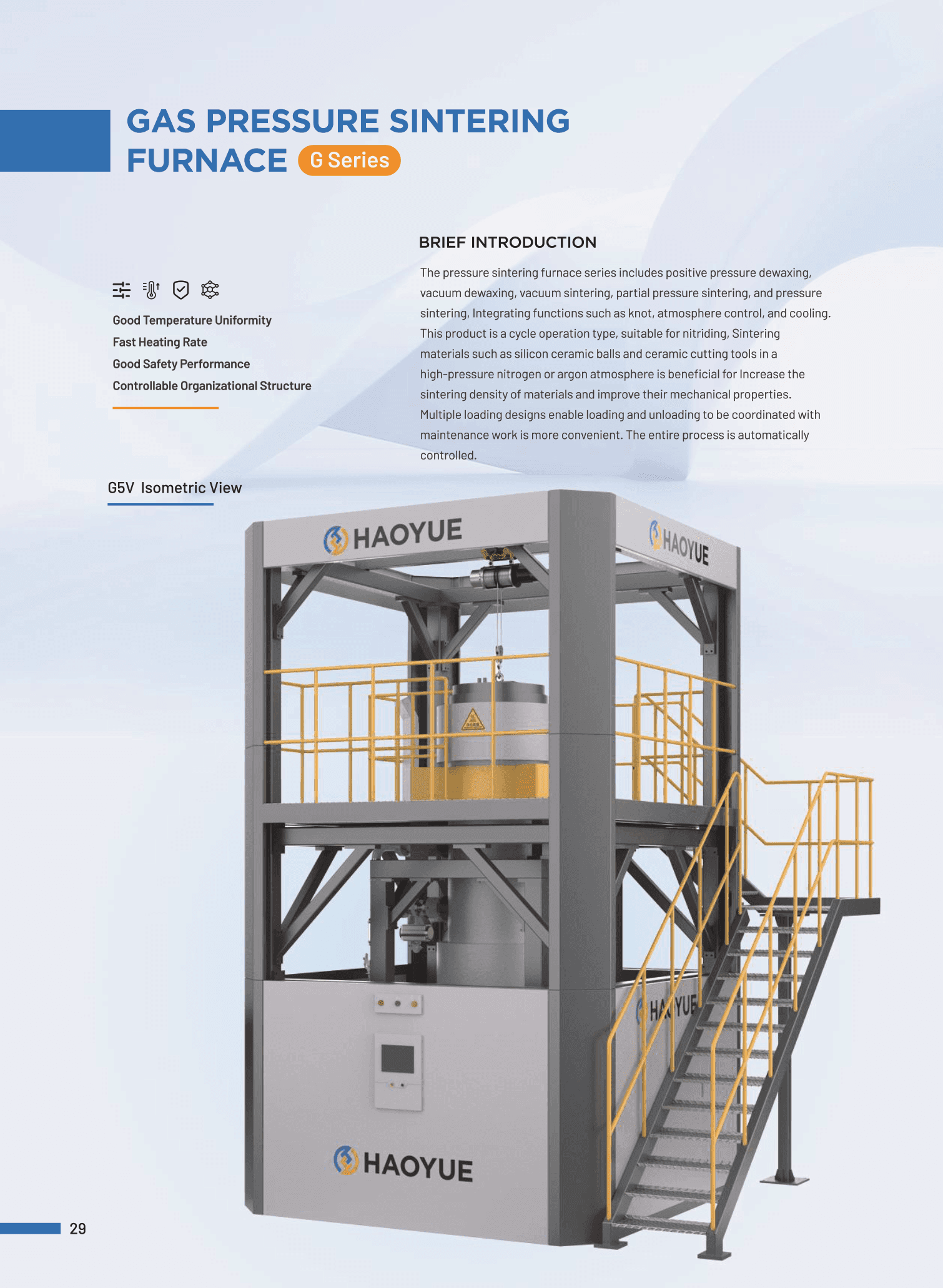

Brochure pages
G Series Gas Pressure Furnace Reference
