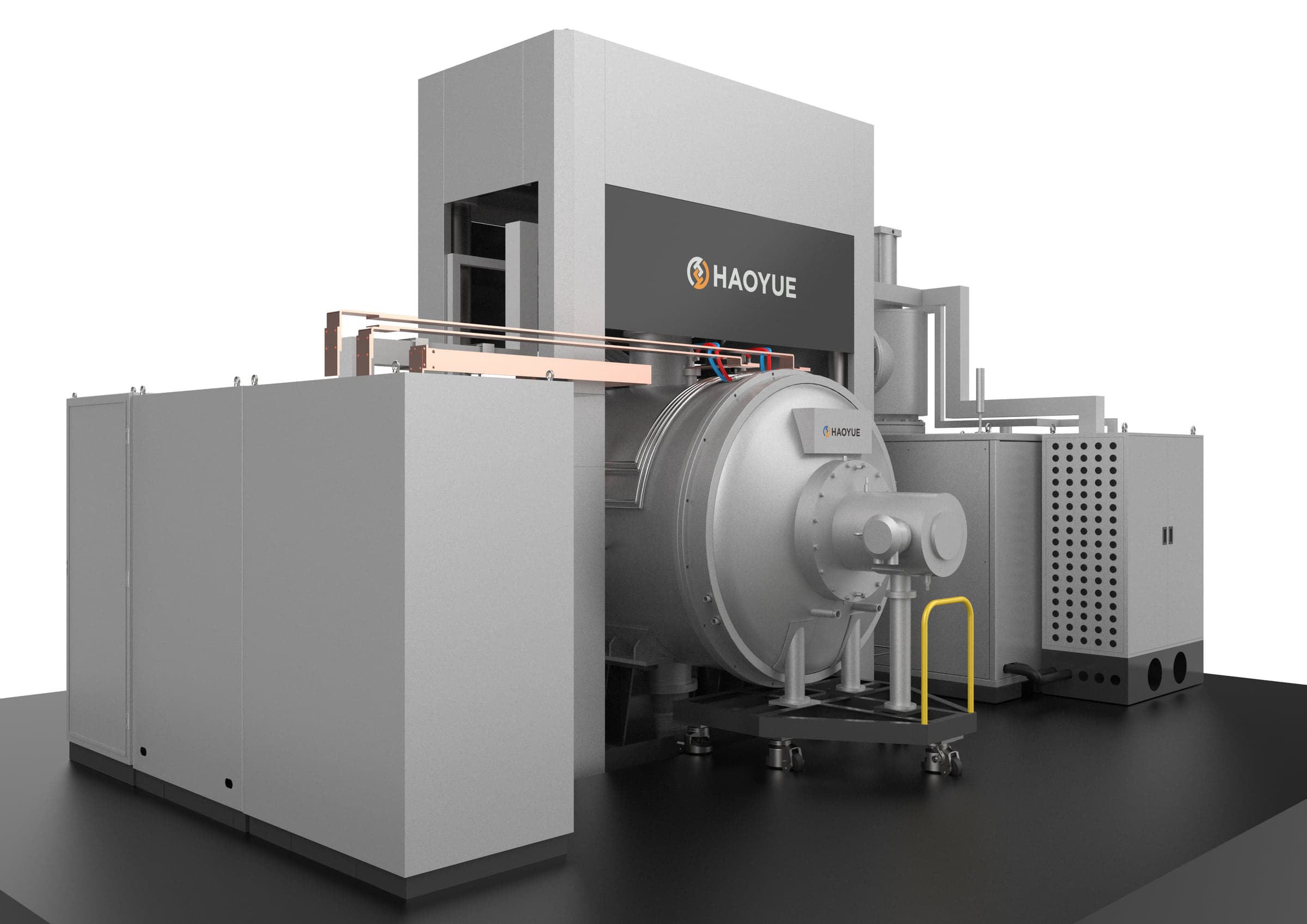

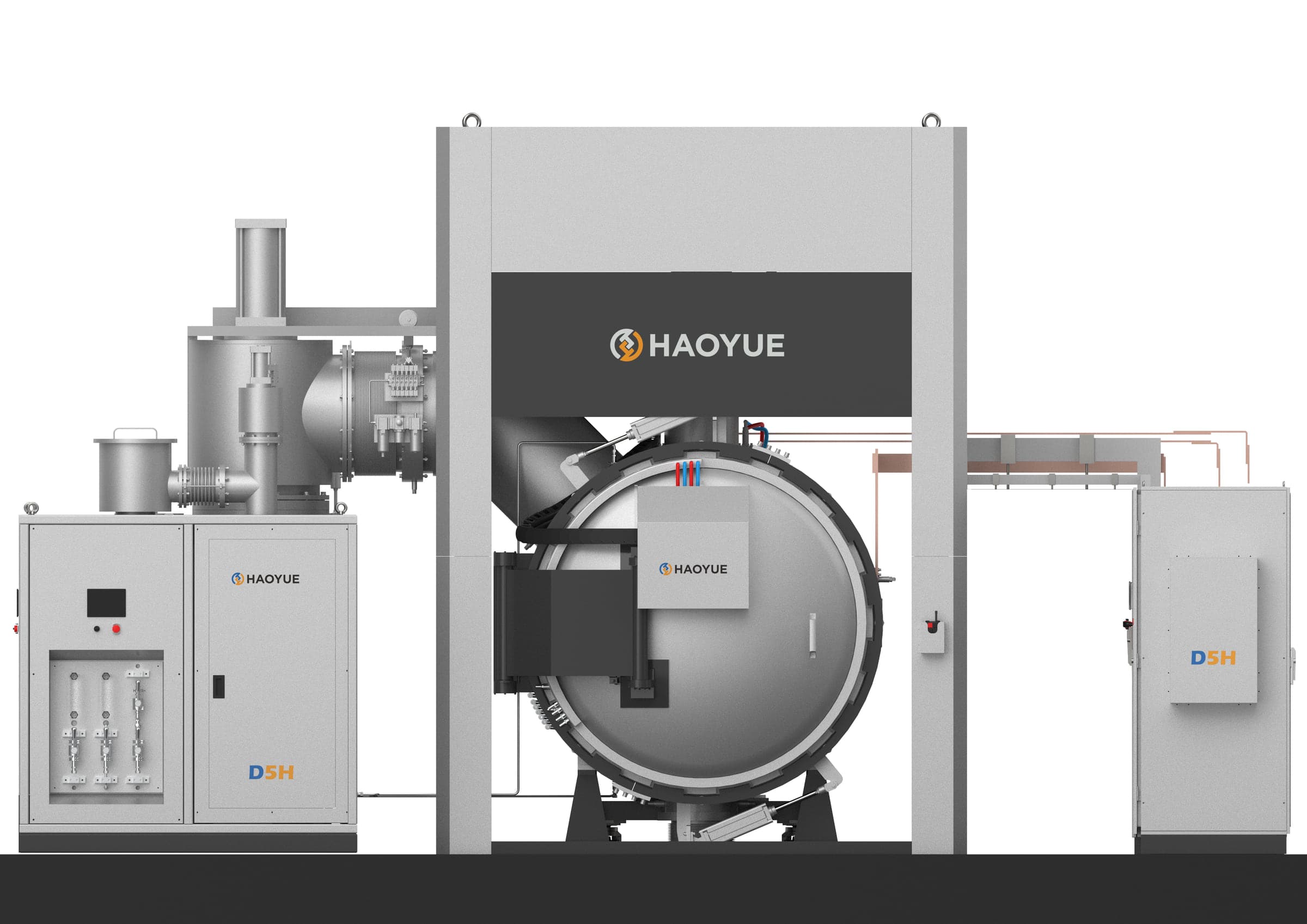

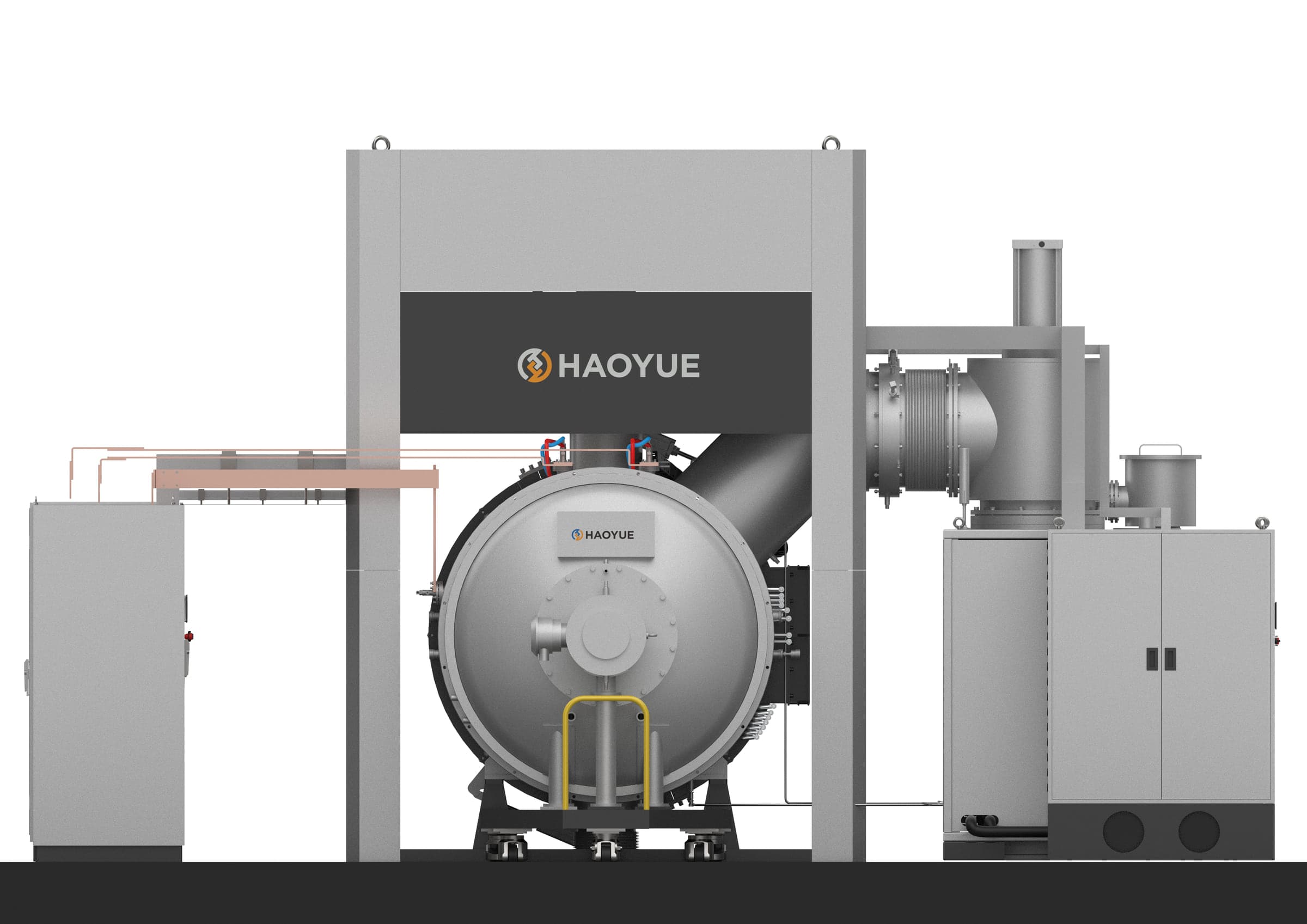

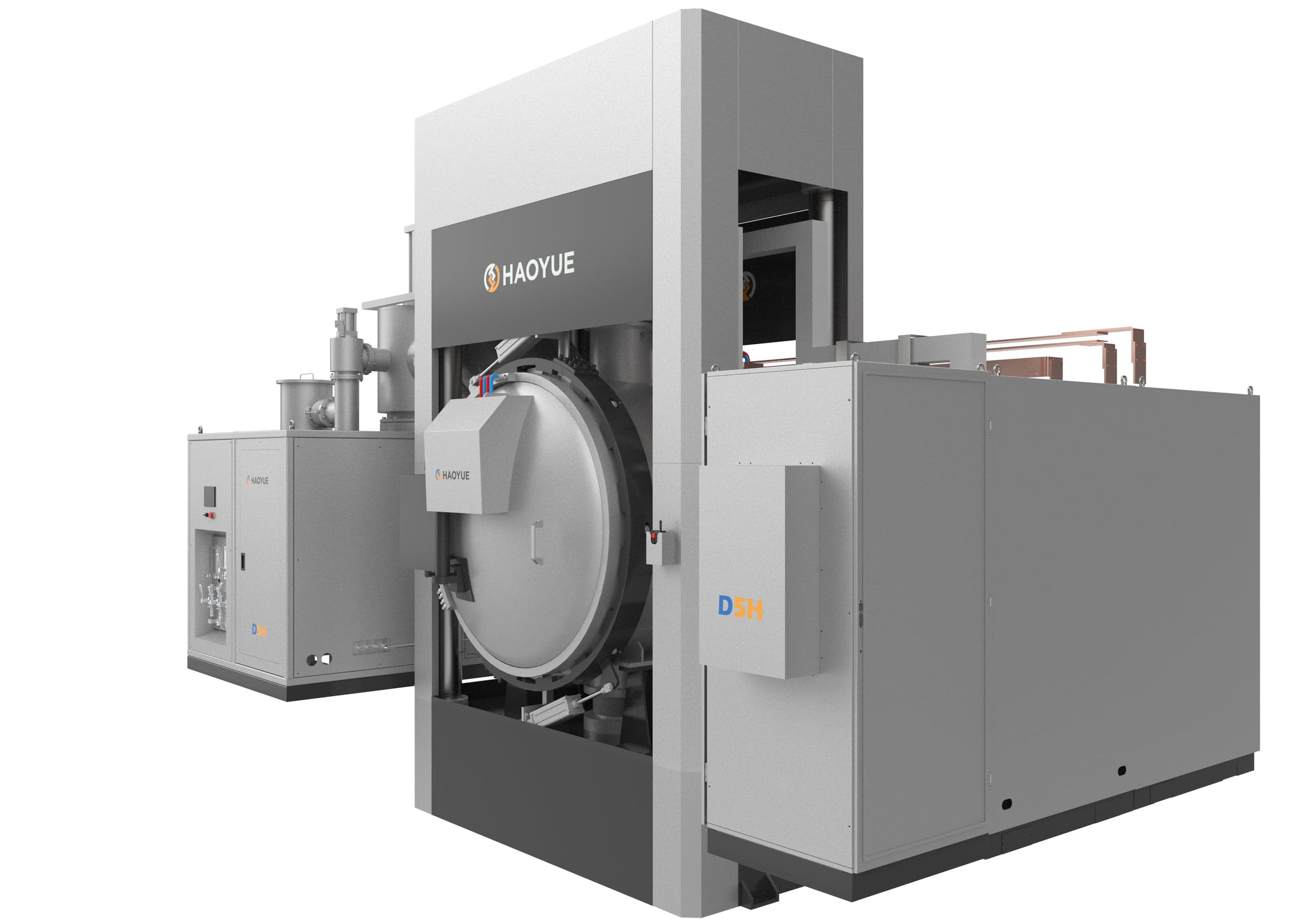

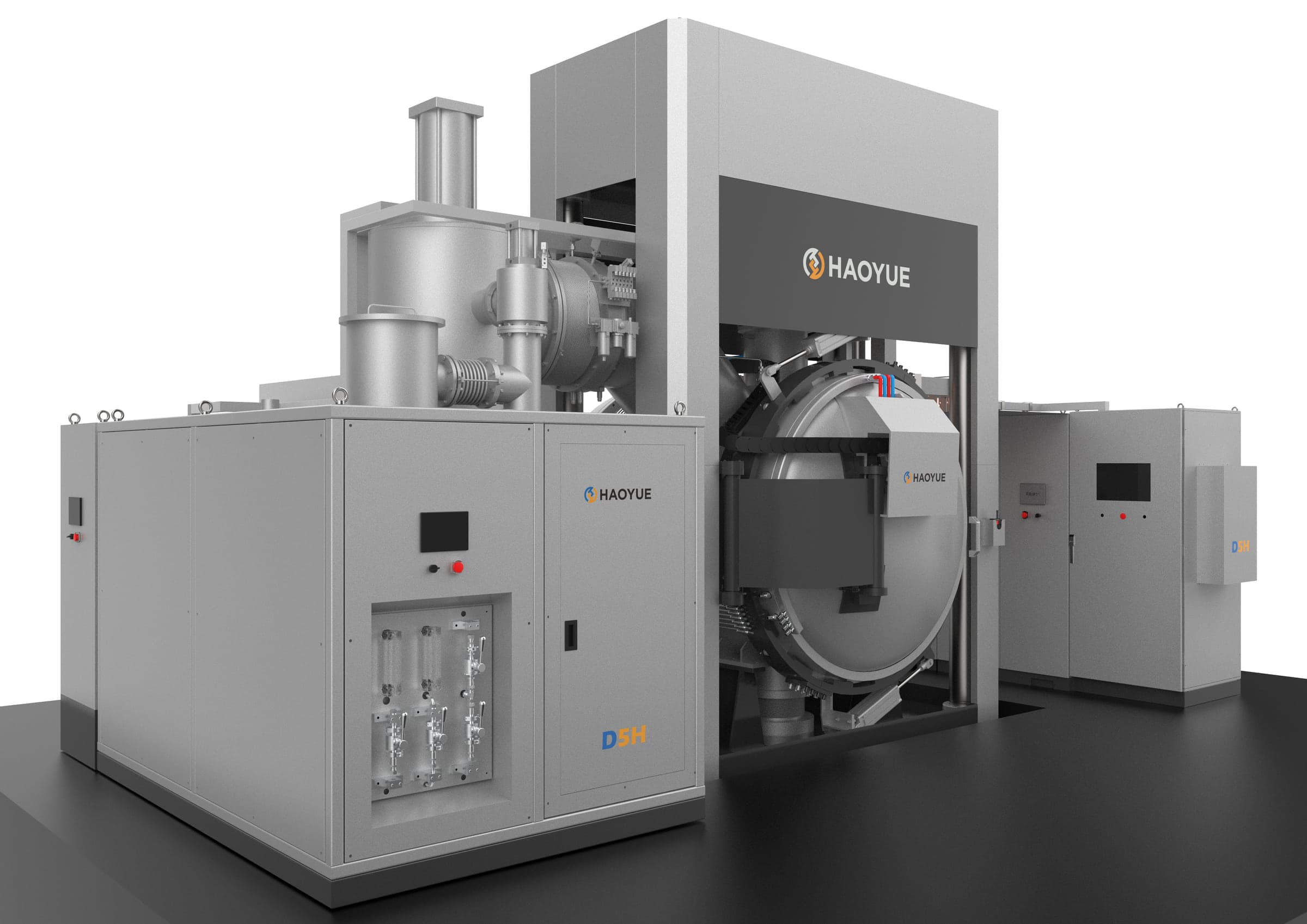

D series Vacuum Diffusion Welding Furnace
D series Vacuum Diffusion Welding Furnace
Good Temperature Uniformity / Fast Heating Speed / High Pressure Accuracy /Good Safety Performance / Fast Cooling Speed Difusion welding refers to a solid-state...
Key Features
Technical Highlights
Haoyue vacuum diffusion bonding furnace is used for high-temperature diffusion welding and bonding of metals, alloys and advanced material assemblies under vacuum.
Haoyue gas pressure sintering furnace provides high-temperature pressure sintering for silicon nitride ceramics, advanced ceramics and powder metallurgy materials requiring stable atmosphere control.
Haoyue vacuum diffusion bonding furnace is used for high-temperature diffusion welding and bonding of metals, alloys and advanced material assemblies under vacuum.
Haoyue gas pressure sintering furnace provides high-temperature pressure sintering for silicon nitride ceramics, advanced ceramics and powder metallurgy materials requiring stable atmosphere control.
Process Flow
Diffusion Bonding Process Overview
Vacuum diffusion bonding joins mating surfaces through atomic diffusion under heat and sustained pressure, without a melting interface.
D5H joint-specific review
Turn furnace capacity into a joint and inspection acceptance plan.
Use this product page for the D5H equipment configuration. The final proposal should be tied to the material pair, complete joint stack, tooling, load distribution, thermal-vacuum records, and inspection route.
Joint and stack definition
Provide material grades, plate or channel drawings, bonding area, stack height, surface route, flatness, protected passages, and fixture envelope.
Load and thermal field
Confirm platen or ram arrangement, tooling stiffness, alignment, temperature measurement, pressure or load trace, dwell, and controlled cooling.
Vacuum and records
Define the vacuum and cleanliness requirement, measurement points, leak-rate method, data channels, report format, and retained process records.
Inspection and handover
Assign witness samples, dimensional or leak checks, joint validation, factory test, documentation, installation, training, and site acceptance responsibilities.
Technical selection guide
Plan the process before comparing D series Vacuum Diffusion Welding Furnace options.
Review joint materials, pressure, vacuum, tooling, inspection, and quotation inputs before selecting a configuration.
Lifecycle support
Plan support alongside the equipment configuration.
Coordinate site interfaces, safety checks, documentation, and acceptance planning around the selected furnace scope.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
