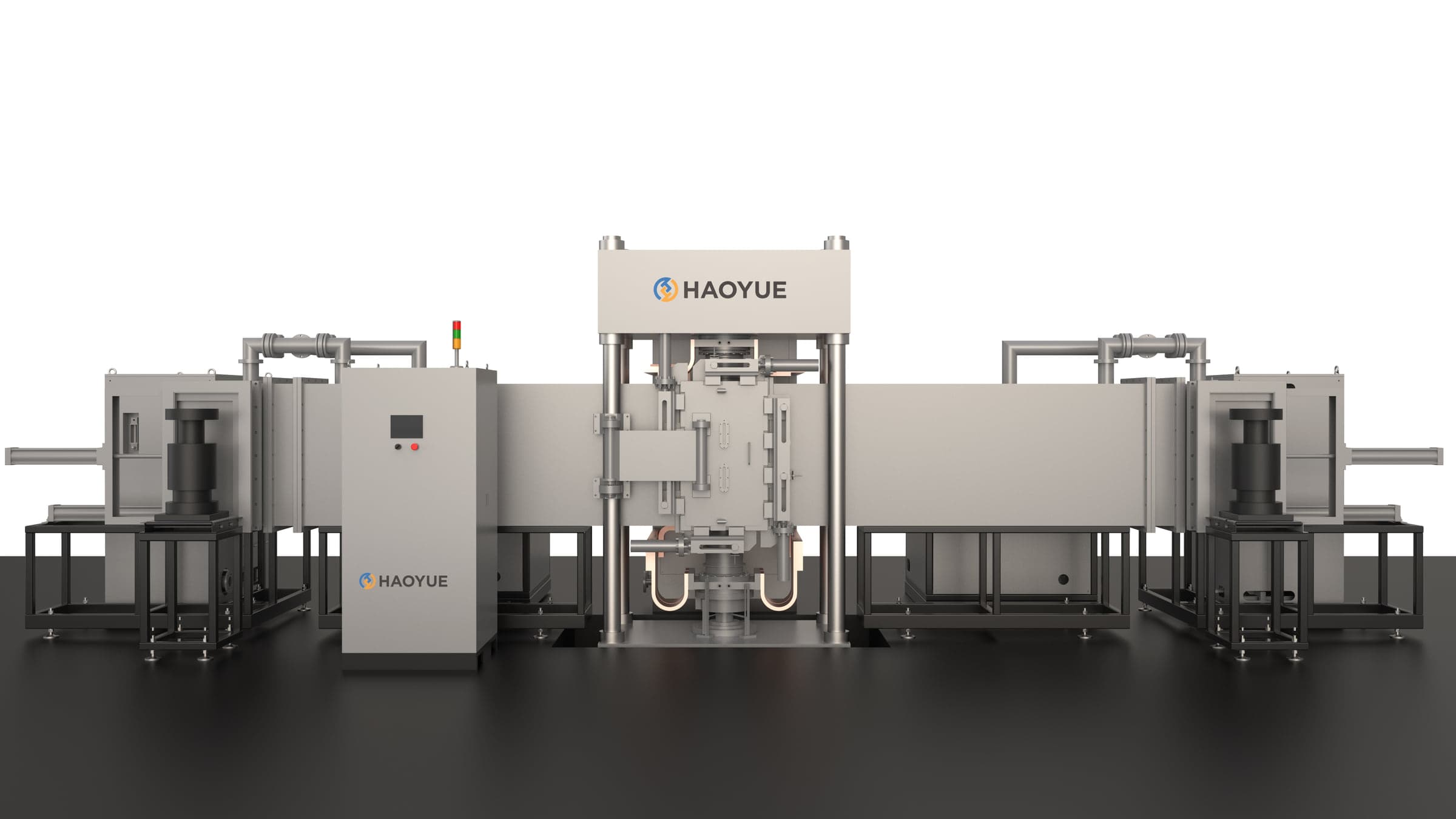

S series Continuous SPS Spark Plasma Sintering System
S series Continuous SPS Spark Plasma Sintering System
High Production Efficiency / High Automation Program / Good Temperature Uniformity / Fast Heating Speed / High Pressure Accuracy / Good Safety Performance The S...
Key Features
Technical Highlights
High Production Efficiency / High Automation Program / Good Temperature Uniformity / Fast Heating Speed / High Pressure Accuracy / Good Safety Performance
Sintered nanomaterial without significant grain growth
FGM (Functionally Graded Materials); Composite materials; Innovative carbide metals; Aluminum and copper alloys as well as intermetallic compounds
Structural and functional ceramics; Electronic Materials; Sputtering target material; Bioma materials; Porous materials; Magnetic materials
Process Flow
SPS Process Overview
Spark plasma sintering pairs pulsed DC current with uniaxial pressure to densify powders in minutes instead of hours.
Selection guide
Confirm the process window before quotation.
For faster engineering review, prepare the core process boundaries before sending an inquiry.
Can the chamber be customized?
Yes. Chamber size, heating zone, fixture, pressure, and atmosphere configuration should be confirmed through technical review.
Is a process test recommended?
For new materials or demanding density targets, a sample process discussion helps reduce equipment selection risk.
What should be sent with an inquiry?
Material, target temperature, pressure or load, atmosphere, workpiece size, and expected capacity are the most useful inputs.
Official Specification Tables
Imported from Haoyue's official product data and reorganized for clearer technical review.
| No. | Model | Device Form | Sample Dia. (mm) | Pressure (kN) | Ultimate Vaccum (Pa) | Max. Heating Power (kW) | Current (A) | Voltage (V) | Operating Temperature (°C) |
|---|---|---|---|---|---|---|---|---|---|
| S-150C | VCPsp-25/70-2200 | Continuous | 150 | 1000 | 1 | 300 | 30000 | 10 | 2200 |
| S-200C | VCPsp-32/80-2200 | Continuous | 200 | 2000 | 1 | 400 | 40000 | 10 | 2200 |
